2.5″ / 50mm Shockproof Oil Filled Pressure Gauge

Short Description:


Product Detail

Product Tags

Application

Shockproof pressure gauge is mainly used for pressure detection in metallurgy, electric power, petroleum, chemical industry, light industry, machinery and other industrial sectors.

Gauges rely on internal filling of damping fluid and supporting buffering devices to reduce the impact of pulsating pressure or vibration of the unit.

This pressure gauge has good shockproof performance.lt is suitable for the occasions where the pressure of the tested medium has strong pulse change or pressure impact and the production process is often suddenly unloaded, as well as the place where the environment vibrates greatly.

This meter is suitable for measuring gas and liquid pulsation pressure which does not corrode copper alloy. Internal damping design can ensure reading accuracy.

Parameters

Diameter: φ50mm
Working Pressure:Static load to the upper limit of measurement 3/4, alternating load to the upper limit of measurement 2/3, short-term pressure to the upper limit of measurement.
Connection thread: M14X1.5, PF (PT/NPT) 1/4
Instrument damping fluid: methyl silicone oil
Spring tube: tin phosphor bronze tube
Connection material: copper alloy
Movement:brass alloy
Case material: SUS304
Window: PC glass

Operation

■With a sharp pressure changes or vibration environment.Plus environment protection device shall be added
■Please do not pull the instrument shell by hand in the installation or removal,should use a professional wrench for installation;
■Pressure gauges shall be horizontal or vertical installation.
■Measurement with explosion danger ,easy to crystallization,easy solidication,corrosion resistance requirements,you should use Hakin special medium measuring instrument.
■The pressure gauge is to be used at an ambient temperature between -35°C~+70°C with a relative humidity not exceeding 85% (close to the lowest temperature will affect the normal work of the instrument)

Model Code

lf you have other requirements, please confirm with our company's technical department before customizing.

product-img-1

Pressure Range & Accuracy

product-img-2

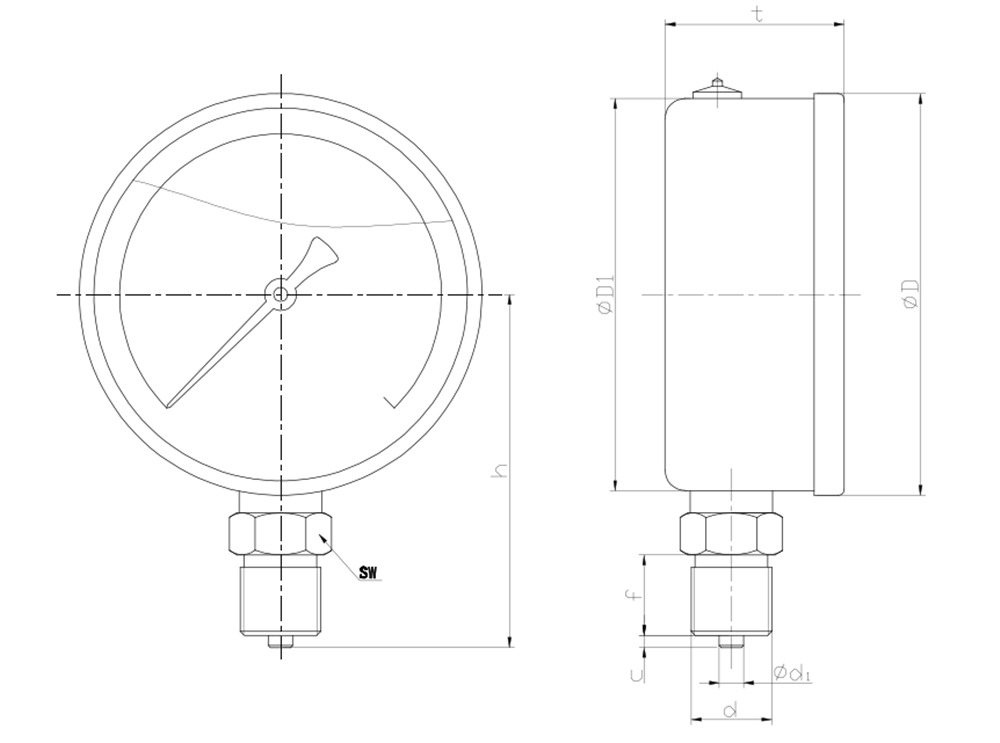

Boundary Dimension

size-1

Size

product-img-3

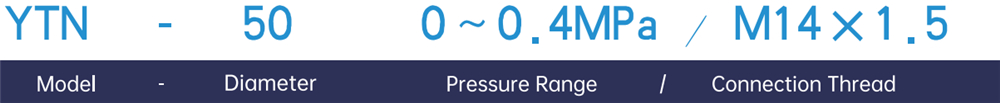

Demo Mode

product-img-4

★Shockproof pressure gauge, radial installation, measuring range is 0-0.4 Mpa, thread is M14x1.5, if you can provide the measurement medium, installation conditions and other information, more quickly and accurately for customers to select the type.

Order Remarks

Model



Diameter

Installation Structure

Pressure Range

Connection Thread

Safety Warning

For safety, please select the correct model of product. lf the product is selected or used improperly,it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
