Ammonia Pressure Gauge with Stainless Steel Wet Parts
Application
Ammonia pressure gauges are used for measuring non-corrosive, amorphous and solidified media of carbon steel,alloy structure, stainless steel and tin-lead solder.
It is mainly used for measuring the pressure of liquid,gas or mixture of a ammonia in the process for fertilizer production and refrigeration equipment.
Parameters
Diameter: φ60mm, φ100mm, φ150mm
Working Pressure:Static load to the upper limit of measurement 3/4, alternating load to the upper limit of measurement 2/3, short-term pressure to the upper limit of measurement.
Connection Thread:M14x1.5, M20x1.5
Spring steel: SUS304 SUS316L
Connection Material:Chrome plated steel, SUS304 SUS316
Welding way: Argon arc welding
Movement: SUS201 or SUS304 Steel
Casing: Plate steel (CR1 steel sheet) or SUS304
Window: common glass, tempered glass
Operation
■With a sharp pressure changes or vibration environment.Plus environment protection device shall be added
■Please do not pull the instrument shell by hand in the installation or removal,should use a professional wrench for installation;
■Pressure gauges shall be horizontal or vertical installation.
■Measurement with explosion danger ,easy to crystallization,easy solidication,corrosion resistance requirements,you should use Hakin special medium measuring instrument.
■The pressure gauge is to be used at an ambient temperature between-40°C~+70°C with a relative humidity not exceeding 85%

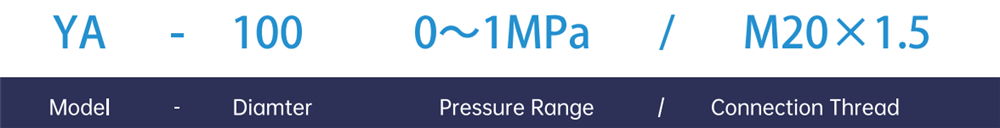

Model Code
lf you have other requirements, please confirm with our company's technical department before customizing.
Pressure Range & Accuracy

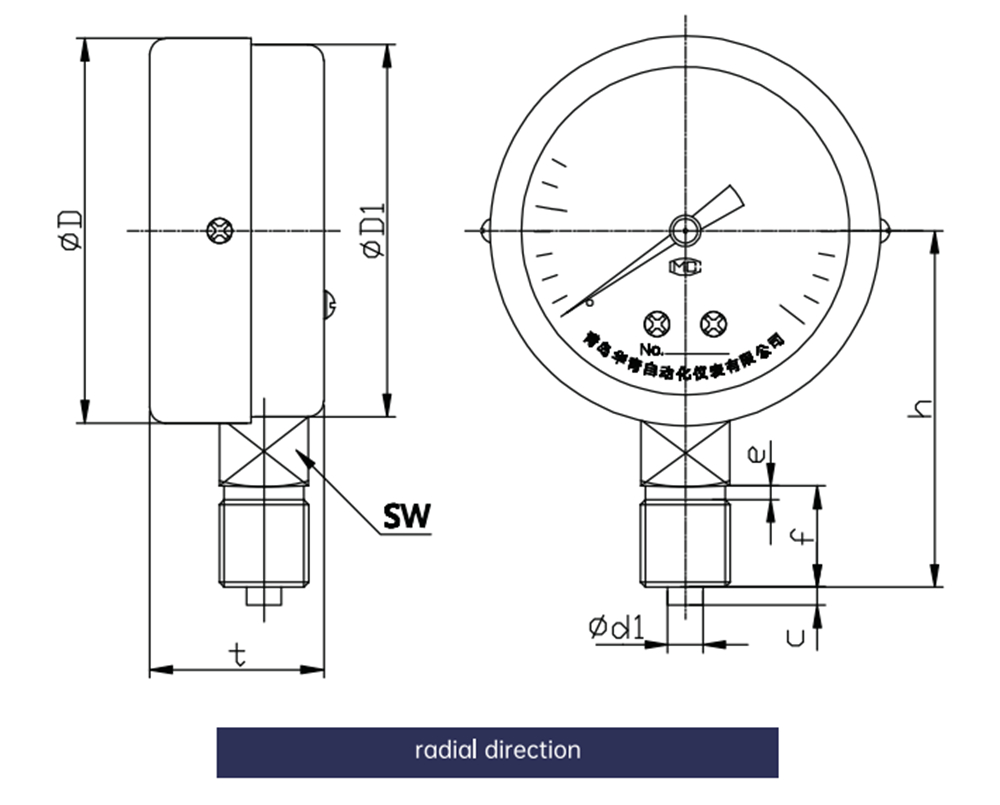

Boundary Dimension
Size
Demo Mode
★ Pressure gauge for ammonia, radial installation, measuring range 0-1MPa, thread M20x1.5.
Order Remarks
Safety Warning
For safety, please select the correct model of product. lf the product is selected or used improperly,it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
