Differential Teletransmission Pressure Gauge
Application
This pressure gauge is a two-wire safety type explosion-proof pressure gauge, used to measure the pressure of liquids, gases and vapors that are not corrosive to copper and its alloys. When it equipped with a damper, it can measure the pressure of pulsation, impact, and sudden unloading of the medium. With a differential transmitter in the gauge, it can switch the measured pressure to 4~ 20mA electric current signal, and transmit to the secondary instrument far from site for concentrated examination and remote control. It can be combined with the display, record, and adjustment instruments in the DDZ-III electric unit combination instrument to form an automatic recording, adjustment, and control system. It is suitable for petrochemical, metallurgy, power station, light industry and other industries, and is especially widely used in constant pressure water supply.
Parameters
Diameter: φ150mm
Accuracy: 1.6%
Working Pressure:
- Steady: 3/4 X full scale value
- Fluctuating: 2/3 x full scale value
- Short Time: Full scale value
Transmission method: two-wire
Output signal: 4 ~ 20mA
Working voltage: DC24V
Connection Thread: M20x1.5, PF(PT, NPT)1/2, etc.
Elastic element: Qsn8-0.3 brass
Connection Material: HPb59-1 brass
Movement: Brass
Case: Die-cast aluminum alloy
Window: Common glass
Operation
The wiring operation should be carried out by a qualified electrician.
■Please read the instructions carefully before use.
■Please use Hakin special medium pressure gauge when measuring the medium that is explosive or corrosive, easy to crystallize or solidify.
■It is necessary to add a protective device for the pressure gauge in an environment with a sharp pressure change or vibration or pulsation.
■When installing or disassembling, don't pull the case of the gauge by hand, use a special wrench to install or disassemble.
■The pressure gauge should be installed horizontally or vertically.
■The normal working environment temperature of the pressure gauge is -40°C~ + 70°C, and the relative humidity is not more than 85%.
Model Code
lf you have other requirements, please confirm with our company's technical department before customizing.
Pressure Range & Accuracy

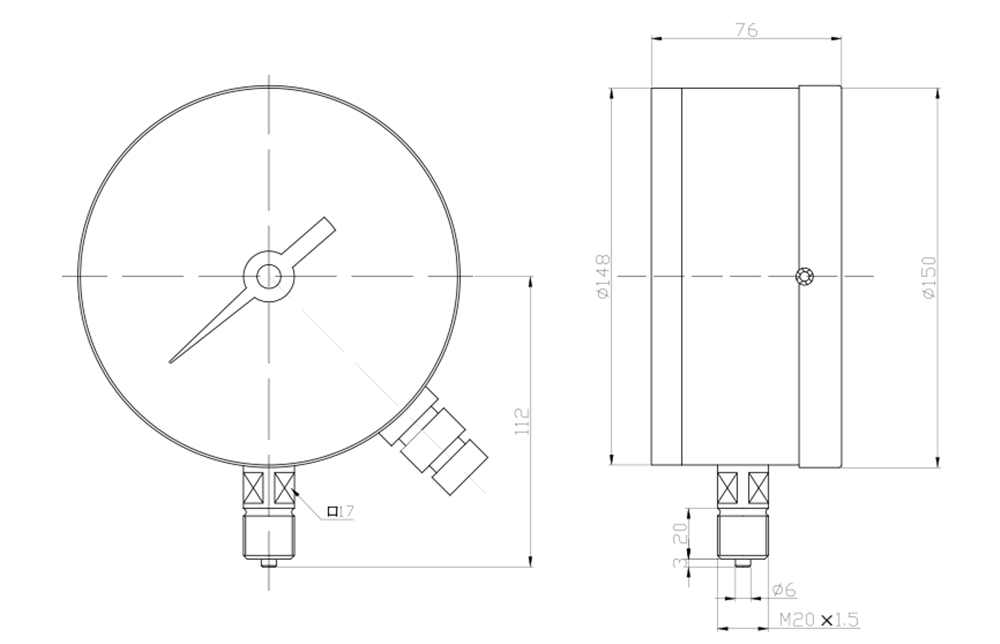

Boundary Dimension

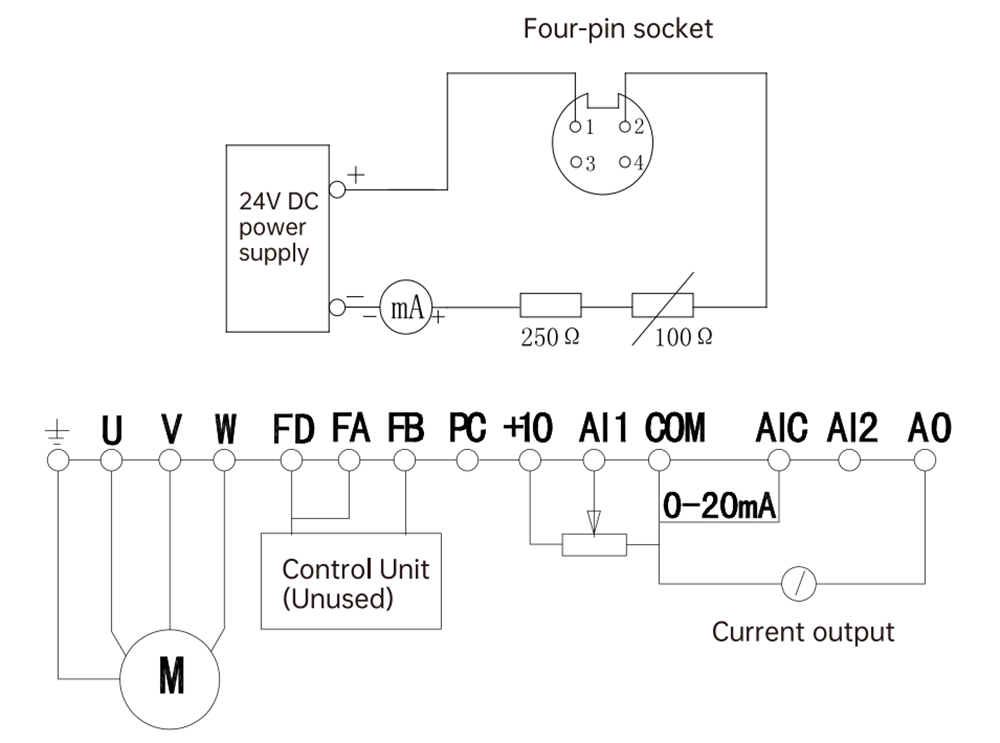

Wiring Diagram

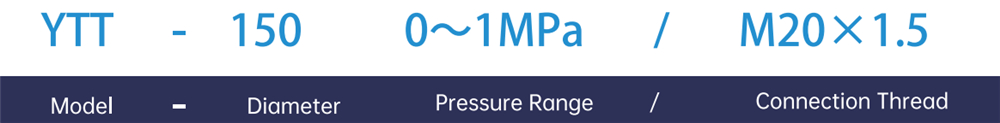

Demo Mode
★Differential Teletransmission Pressure Gauge, Diameter φ150, Bottom Connected, Pressure Range0~1MPa, Connection Thread M20x1.5
If you can provide information such as measuring medium, installation conditions, etc., we can select the model for you more quickly and accurately.
Order Remarks
Safety Warning
For safety, please select the correct model of product. If the product is selected or used improperly, it may cause property loss or personal injury. The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
