Shockproof Precision Pressure Gauge (With Zeroing Device)

Short Description:


Product Detail

Product Tags

Application

Precision pressure gauges are mainly used to calibrate general pressure gauges and to accurately measure the pressure of liquids, gases and vapors that are not corrosive to copper and its alloys. It can also be used to calibrate or verify other pressure measuring instruments, as well as other types of instruments whose display value has a certain functional relationship with pressure value.

Parameters

Diameter: φ 150mm
Accuracy: 0.4%, 0.25%
Working Pressure: Steady: 3/4 × full scale value, Fluctuating: 2/3 × full scale value, Short Time: Full scale value
Protection grade: IP65(oil filled model)
Pressure range: 0.1-60Mpa
Connection Thread: M20x1.5
Elastic component: Qsn8-0.3 brass, stainless steel
Connection: copper alloy
Movement: Copper alloy with jewel bearing
Case: CR1 steel sheet, die-cast aluminum alloy
Window: PC glass

Operation

1. Please read the instructions carefully before use.

2. It is necessary to add a protective device for the pressure gauge in an environment with a sharp pressure change or vibration or pulsation.

3. When installing or disassembling, don't pull the case of the gauge by hand, use a special wrench to install or disassemble.

4. The pressure gauge should be installed horizontally or vertically.

5. Please use Hakin special medium pressure gauge when measuring the medium that is explosive or corrosive, easy to crystallize or solidify.

6. If the influence of ambient temperature deviates from 20±3°C, the additional temperature error of 0.4%/10°C must be considered.

Model Code

lf you have other requirements, please confirm with our company's technical department before customizing.

img-1

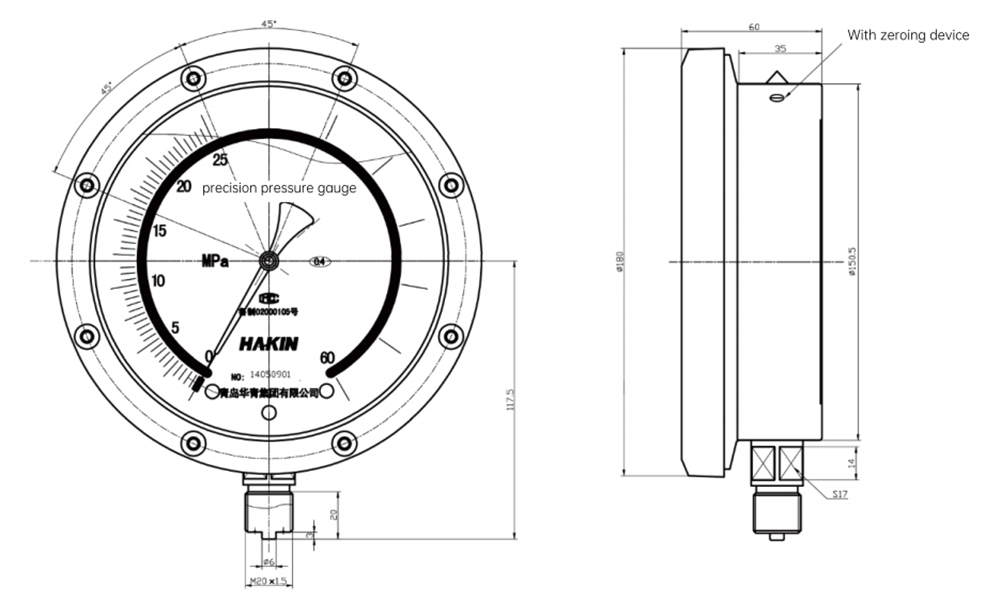

Boundary Dimension

size-1

Demo Mode

img-2

★Precision shockproof pressure gauge with outer diameter φ 150 radial mounting, measuring range 0-1 Mpa, thread M20x1.5, with additional zero setting function.

Order Remarks

Model



Diameter

Installation Structure

Pressure Range

Connection Thread

Safety Warning

For safety, please select the correct model of product. lf the product is selected or used improperly,it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
