Stainless Steel Pressure Gauge
Application
Stainless steel pressure gauges are widely used in petroleum, chemical, chemical fiber, metallurgy, power stations and other industries. It can measure the pressure of various media in the process that requires high corrosion resistance.
Parameters
Diameter: φ60mm,φ100mm,φ150mm
Working Pressure:
- Steady: 3/4 x full scale value
- Fluctuating: 2/3 x full scale value
- Short Time: Full scale value
Connection Thread: M14x1.5, M20x1.5, PF(PT/NPT)1/4, PF(PT/NPT)1/2, etc
Pressure Element: SUS304 | SUS316L
Connection Material: SUS304 I SUS316
Movement: SUS304
Case: SUS304
Window: Common glass, Tempered glass
Operation
■It is necessary to add a protective device for the pressure gauge in an environment with a sharp pressure change or vibration or pulsation.
■When installing or disassembling, don't pull the case of the gauge by hand, use a special wrench to install or disassemble.
■When measuring oxygen, acetylene, hydrogen or other flammable gases, pressure gauges with oil prohibition signs should be used.
■The pressure gauge should be installed horizontally or vertically.
■Please use Hakin special medium pressure gauge when measuring the medium that is explosive or corrosive, easy to crystallize or solidify.
■The normal working environment temperature of the pressure gauge is -40°C ~ + 70°C, and the relative humidity is not more than 85%.

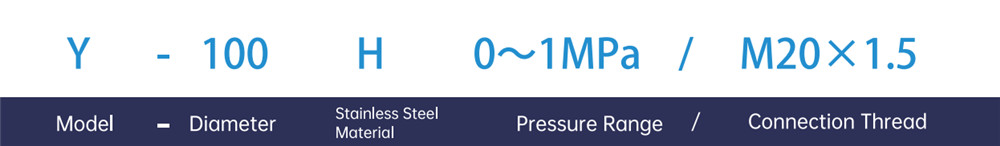

Model Code
lf you have other requirements, please confirm with our company's technical department before customizing.
Pressure Range & Accuracy

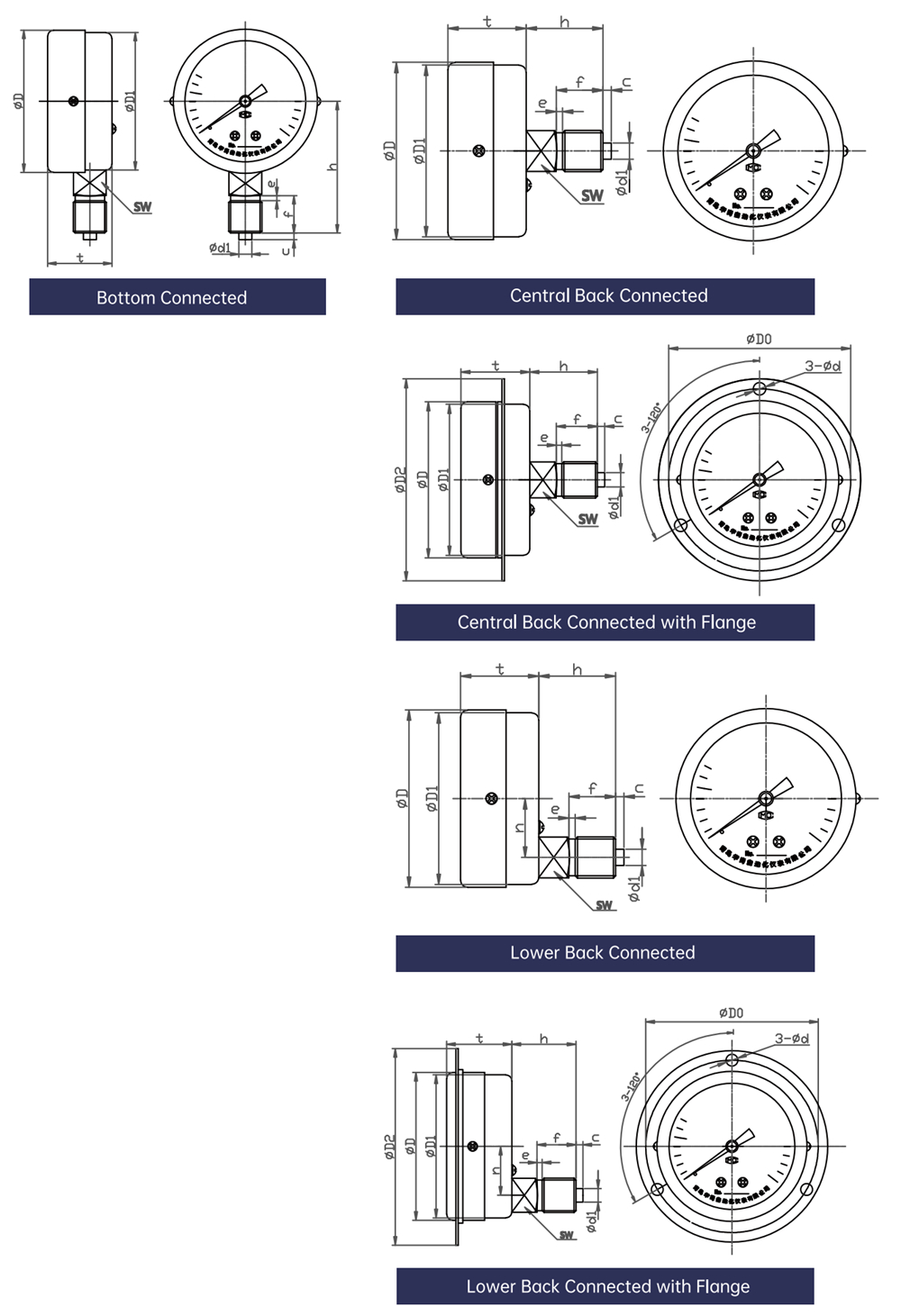

Boundary Dimension
Size
Demo Mode
★Stainless Steel Pressure Gauge, Bottom Connected, Pressure Range0~ 1MPa, Connection Thread M20x1.5
If you can provide information such as measuring medium, installation conditions, etc., we can select the model for you more quickly and accurately.
Order Remarks
Safety Warning
For safety, please select the correct model of product. lf the product is selected or used improperly,it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
