Temperature Integrated Pressure Gauge

Short Description:


Product Detail

Product Tags

Application

This gauge can measure pressure and temperature,it can be used in many ways and save a lot of space for the pipeline. Suitable for various types of heating systems, it can simultaneously read the pressure and temperature of the measured object.Convenient and easy,no need to install several gauges in the pipe,also do not worry about the installed gauges will affect each other,it is the first choice for many applications and it suitable for measuring water temperature and air temperature in HVAC industry.it can be used for floor heating,heating furnace,etc.

Parameters

Diameter: φ63 mm
Pressure range: 0-6bar, 0-10bar
Pressure accuracy: 2.5%,1.6%
Temperature range: 0-120°C,0-200°C
Temperature accuracy: 2.5%,4.0%
Connection thread: G1/4
Temperature sensitive material: Bimetallic strip
Temperature element: QSn4-0.3
Connection material: HPb59-1
Casing material: carbon steel ABS

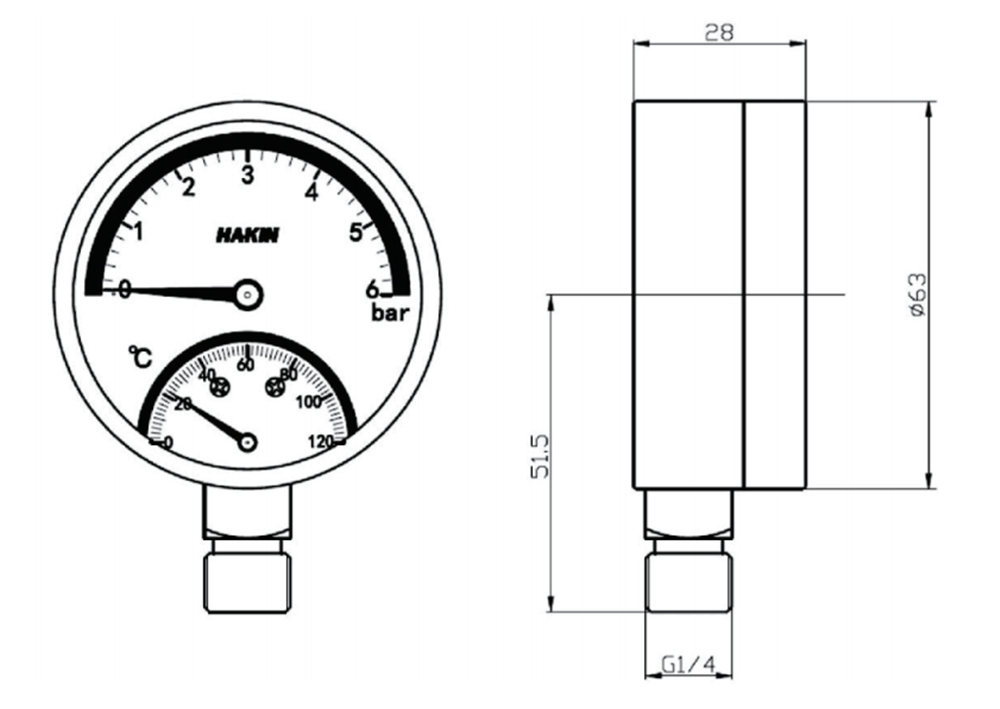

Boundary Dimension

size-1

Demo Mode

img-1

★Temperature gauge,60 bottom mounting, pressure range 0-6bar, temperature range 0-120°C, connection thread G1/4.

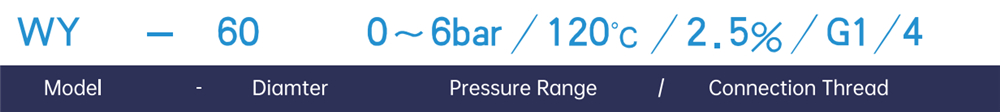

Order Remarks

Model



Diameter

Installation Structure

Pressure Range

Connection Thread

Safety Warning

For safety, please select the correct of product. lf the product is selected or used improperly, it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
