Refrigeration Oil-filled Pressure Gauge
Application
Refrigeration oil filled pressure gauge is suitable for measuring the pressure value of refrigeration equipment,commercial air conditioning,air energy water heater and other relevant refrigeration systems equipment,so as to facilitate the staff to master the operation of equipment.
Parameters
Diameter: φ 62mm
Working Pressure: static load up to 3/4 of the upper limit of measurement, 2/3 of upper limit of measurement alternating load, and upper limit of measurement for short term pressure.
Connection Thread: PF(PT/NPT)1/4, UNF7/16
Damping fluid: methyl silicone oil
Spring tube: tin phosphor bronze tube
Connection Material: copper alloy
Movement: copper alloy
Casing: SUS304 steel
Window: PC glass
Operation
■With a sharp pressure changes or vibration environment.Plus environment protection device shall be added;
■Please do not pull the instrument shell by hand in the installation or removal,should use a professional wrench for installation;
■Pressure gauges shall be horizontal or vertical installation.
■Measurement with explosion danger ,easy to crystallization,easy solidication,corrosion resistance requirements,you should use Hakin special medium measuring instrument.
■The pressure gauge is to be used at an ambient temperature between -40°C~+70°C with a relative humidity not exceeding 85%
Model Code
Pressure Range & Accuracy

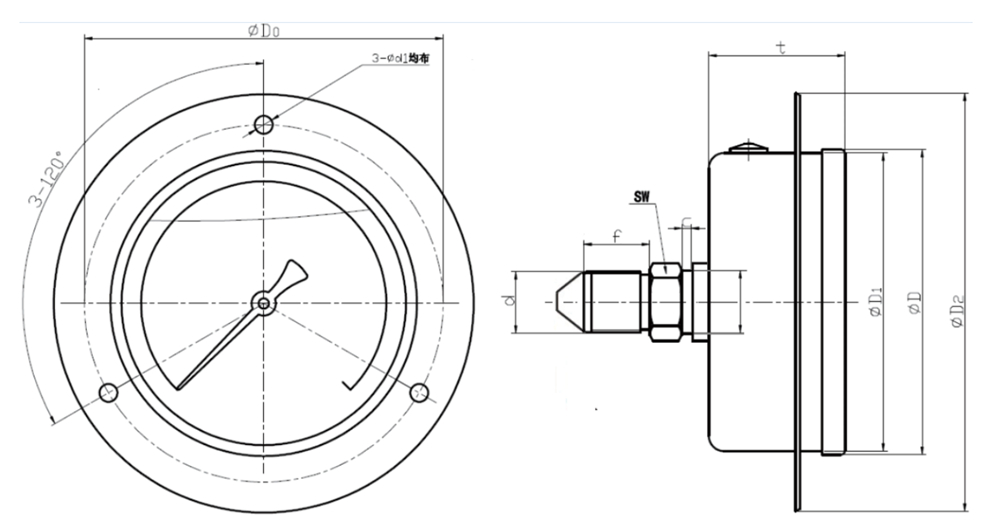

Boundary Dimension
Size
Demo Mode
★Shock Pressure gauge, front flange mounting, pressure range -0.1-1.8MPa,connection thread is UNF7/16
If you can provide measurement media and installation information, it can more quickly and accurately for the customer selection.
Order Remarks
Safety Warning
For safety, please select the correct model of product. lf the product is selected or used improperly,it may cause property loss or personal injury.The designer and user of the system should be fully responsible for selecting the correct product and using the product in the correct way.
